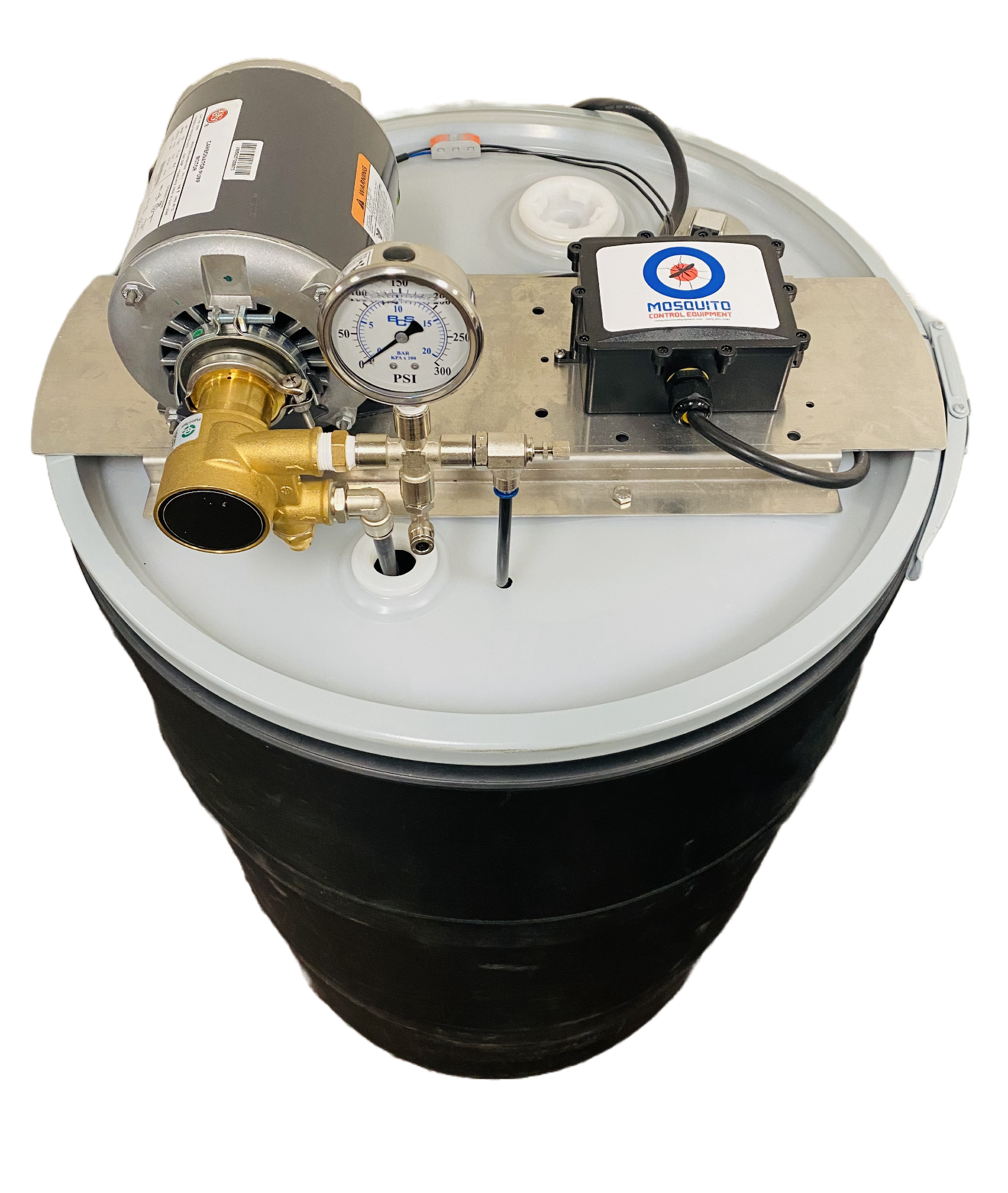

**New** App Controlled Automatic Misting System (AMS-BH)

** NEW ** The BlueHopper AMS Series includes a 1/2HP motor, 100 gallon/ hr 250 psi pump and a 55 gallon reservoir. The device connects bluetooth to the indoor gateway that connects to your Wifi or Ethernet. If the devices are too far apart we have an optional reapeater. Some knowledge of setting up gateways and connecting to bluetooth required, though the app walks you through it.

We have teamed up with MeshTek, an existing lighting control company with a well rated app (BH Installer and BlueHopper) so the app and device type have already been use in the field for many years with great success.

10-Second Setup: Forget complex programming. Power up the controller, open the BR Installer app, and you’re commissioned in seconds.

Smart Liquid Monitoring: Integrated flow sensors detect tank levels in real-time. Set thresholds and get alerts before the drum runs dry.

Long Range Mesh: Powered by MeshTek’s bidirectional BLE mesh. Robust connectivity that heals itself and covers large estates.

Gateway Included: MeshTek standard Gateway connects the system to WiFi/Ethernet for remote control from anywhere in the world (install indoors).

Offline Scheduling: Schedules are stored locally on the device. Your misting cycles run perfectly even if the internet goes down.

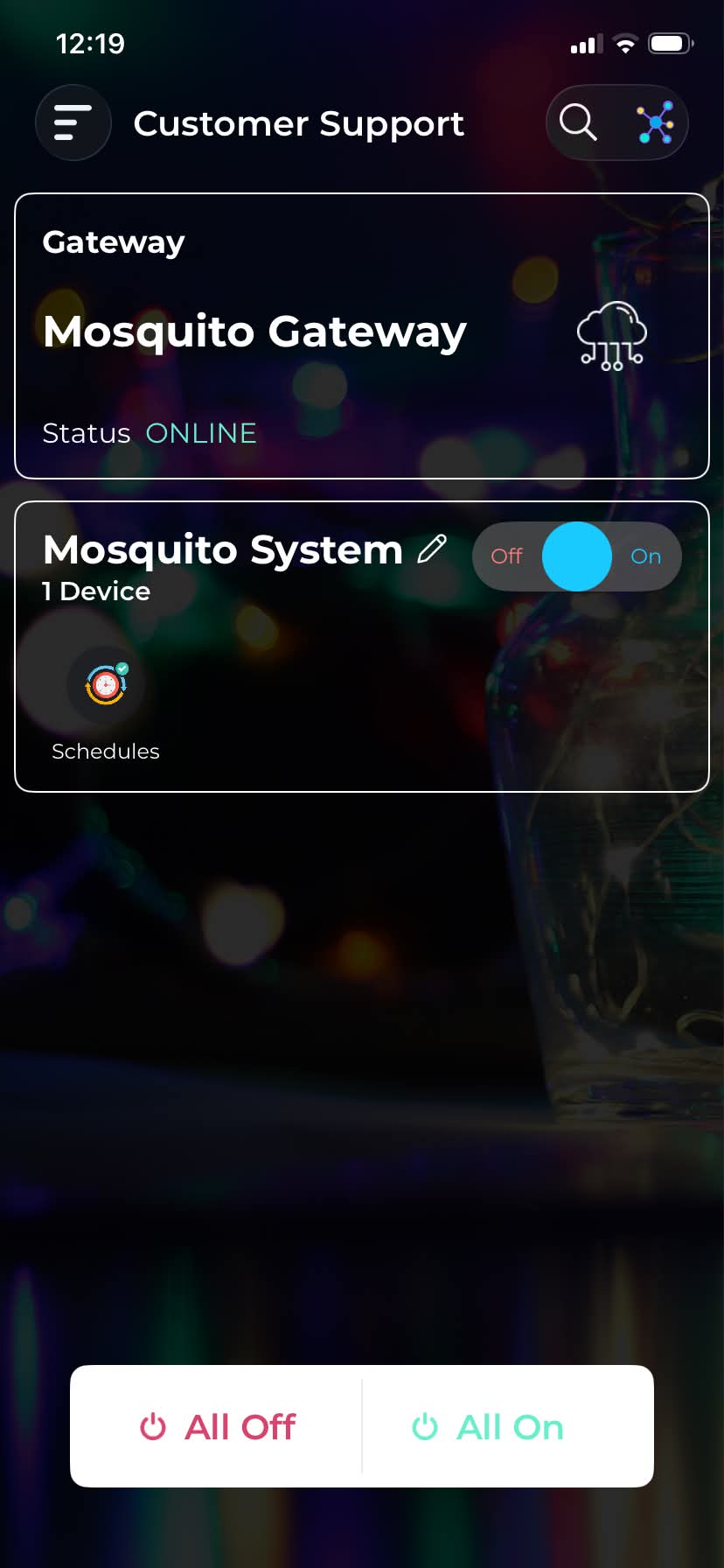

Account Management: Installers you can manage hundreds of customer accounts from a single dashboard. Grant admin or user access with a click. Change spray times, check tank levels, and turn off systems for the winter season all from your office.

It also includes the following features:

• An external float switch that detects when the tank is empty or low and sends a push notification to your cell phone.
• Intuitive Misting Time adjustment for spray times ranging between 5 and 120 seconds.
• In App remote control for inniatoing additional spray cycles outside the programmed schedules.
• A 1/2Hp motor and 250 psi pump that can handle systems up to 70 nozzles (upgrade to 100 nozzle mas optional)

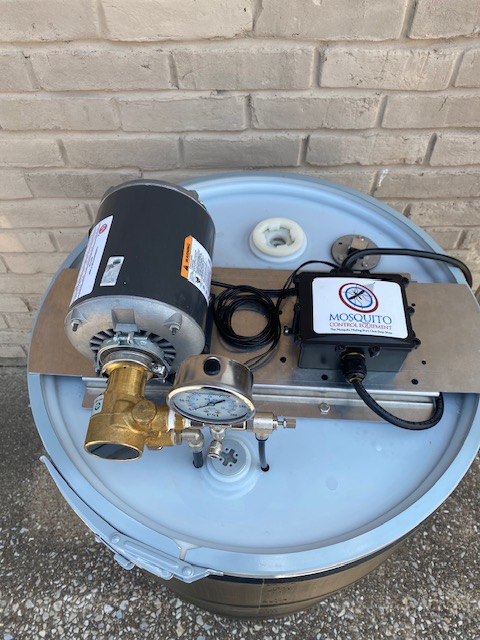

All motor fittings are nickel plated brass for corrosion resistance. Output pressure is monitored with the top mounted liquid filled gauge, and regulated with the needle valve. The aluminum edge to edge mounting plate secures the motor pump and control box while transferring their weight to the edges of the drum preventing the drum lid from prematurely cracking.

The optional check valve prevents back flow to the tank when the misting cycle is complete.

An Optional 140 gph pump is recommended for applications with greater than 70 nozzles.
